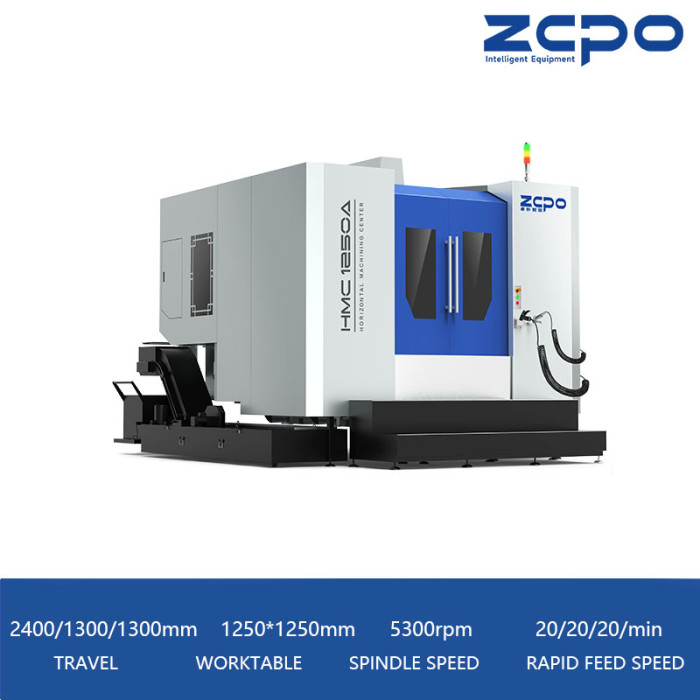

HMC1250A Inverted T type Single worktable
Inverted T type horizontal center machining, Ideal choice for big batch automation processing lines
| Categories | Inverted T Type |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | HMC1250A |
| BRAND | ZOPO CNC |
| CNC | FANUC/SIEMENS/MITSUBISHI |
| SPINDLE | BELT SPINDLE |
| CONTROL | SEMI-CLOSED LOOP CONTROL |
| Update Time | Nov 24,2024 |
Detail Information
HMC1250A
INVERTED T TYPE SINGLE WORKTABLE
Ideal choice for big batch automation processing lines
2400/1300/1300mm
X/Y/Z axis travel
1250x1250mm
Worktable size
5300rpm
Spindle speed
20/20/20m/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Machine structure
“┻” shape and column moving structure to afford high rigidity and travel speed;
All the machine parts adopted finite element analysis.
Spindle
BT50 high tension spindle.
Broaching force 1800kgf (17640N).
Less prone to vibration during processing.
High precision double nut ball screw
Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axes rapid feed speed: 20/20/20m/min
High rigidity, high precision
Low noise roller type linear guideway
Ensure high stability
Man-machine interaction
Vertical stainless steel armor protection design, Better chip removal.
Combined with steeply sloped chip flutes, reduce manual cleanup time.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 2400/1300/1300mm
- Distance from spindle center to table surface
- 140-1440mm
- Distance from spinlde nose to table surface
- 450-1750mm
Worktable
Unit
- Worktable size
- 1250x1250mm
- Workpiece clamping type
- 7-22x125
- Rotary diameter of workpiece
- Φ3200
- Max. load bearing of worktable
- 3000kg
Spindle
Unit
- Spindle hole taper
- BT50
- Spindle power
- 15/18.5KW
- Max. spindle speed
- 5300rpm
Feed
Unit
- Max. feed speed
- 5300mm/min
- Rapid feed speed
- 20/20/20m/min
Tool magzine
Unit
- Tool magzine capacity
- 24T
- Tool changing time
- 5.5S
Accuracy
Unit
- Positioning accuracy
- 0.012mm
- Re-positioning accuracy
- 0.008mm
- B axis positioning accuracy
- 10''
- B axis repositioning accuracy
- 2''
Machine
Unit
- Machine dimension
- 7000*5800*4000mm
- Machine weight
- 22000kg
