SP1020 Belt spindle T type ram

ZOPO Classic T type ram double column machining center：The first choice for processing small molds, mechanical parts, petroleum, aviation, rail transportation and other industries

Categories	Classic T Type Ram Series
Brand	ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
Model	SP1020
Brand	ZOPO Intelligent Equipment
CNC	FANUC/SIEMENS/Mitsubishi
Spindle	Belt drive
Control style	Semi-closed loop control
Update Time	Oct 16,2024

Contact Now

Detail Information

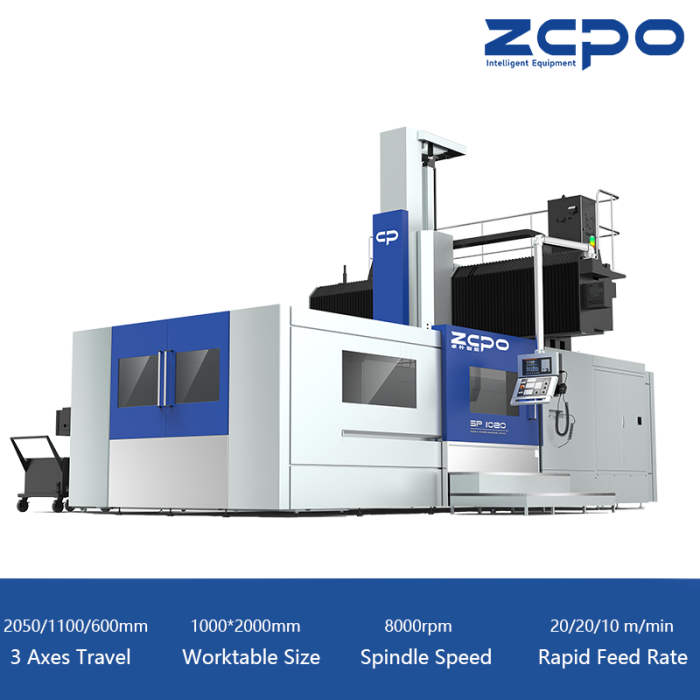

SP1020

Classic T type ram series

The first choice for processing small molds, mechanical parts, petroleum, aviation, rail transportation and other industries

2050/1100/600mm

TRAVEL

1000x2000mm

WORKTABLE

8000rpm

SPINDLE SPEED

20/20/10m/min

RAPID FEED RATE

Model
Appearance
Characteristics
Parameters
Contact Us

Appearance

Characteristics

Serialized and modular design

ZOPO classic T type ram series double column machining center adopts advanced design concept, combined with Finite Element Analysis(FEA), which can effectively reduce the deformation of the machine during machining, and improve the machining accuracy and accuracy retention at the same time.

Modular design provides customers with more configuration options.

The products are rich in variety and complete series to meet the processing needs of different industries; suitable for aluminum alloy, cast iron, steel and other materials.

The overall appearance design easy the operation and maintenance after comprehensive study of ergonomics , especially optimized design of waterproof and chip removal system.

High precision and high stability structural design

All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine tool.

Ram：Optimal central symmetrical spindle box design; hard rail with extra-large cross-section and high rigidity; overall rigidity increased by 20%.
Worktable：The worktable is hollowed out, and the moving parts are lightweight, which improves the response speed of the worktable.
Machine body：One-piece casting bed and internal reinforcement rib design ensure stability and high rigidity; simplify assembly process, reduce assembly errors caused by personnel, and improve machine tool stability.
Beam：The optimal stepped beam and saddle design shifts the overall center of gravity of the spindle box backwards, increasing the machining rigidity.

Easier to use and more powerful control system

Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
