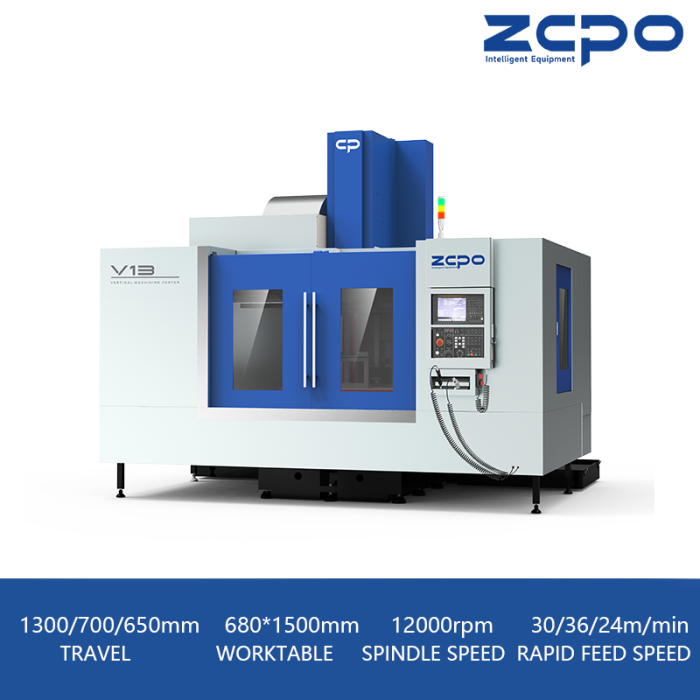

V13 Direct spindle
Industry machine: long travel, high speed, best choice for processing large-size aluminum products
| Categories | Industry Featured Machine |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | V13 |
| BRAND | ZOPO INTELLIGENT |
| CNC system | FANUC/SIEMENS/MITSUBISHI |
| SPINDLE | DIRECT SPINDLE |
| CONTROL | Semi-closed loop control |
| Update Time | Oct 16,2024 |
Detail Information
V13
Pan-aluminum processing
The best choice for large-scale aluminum processing, high-precision molds, and parts processing
1300/700/650mm
X/Y/Z axis travel
680×1500mm
Worktable size
12000rpm
Spindle speed
30/36/24m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
Appearance
Charasteristics
High rigidity, high efficiency, high stability basic structure
Hot sale 8000+ units
Excellent overall performance, high cost performance
- The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machines of the same size.
- The base adopts a large-span base structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.
Direct spindle
- The integrated structure of the spindle box and motor seat reduces the cumulative error of the motor seat assembly
- Greatly improve processing efficiency and quality
- Extend tool life and reduce processing costs
Superior processing capabilities
The VMC series machines with stable cutting performance are suitable for automotive parts, 3C industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1300/700/650mm
- Distance from column to spindle center
- 762mm
- Distance from table surface to spindle nose
- 200-850mm
Worktable
Unit
- Worktable size
- 680x1500mm
- T-slot size
- 5-18*125mm
- Max. load bearing of worktable
- 800kg
Spindle
Unit
- Spindle hole taper
- BT40
- Main motor power
- 7.5/11KW
- Spindle speed
- 12000(Direct)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 30/36/24m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 2.5S
Accuracy
Unit
- Positioning accuracy
- 0.008mm
- Re-positioning accuracy
- 0.004mm
Machine
Unit
- Machine dimension
- 3550*2800*2700mm
- Machine weight
- 8000kg
