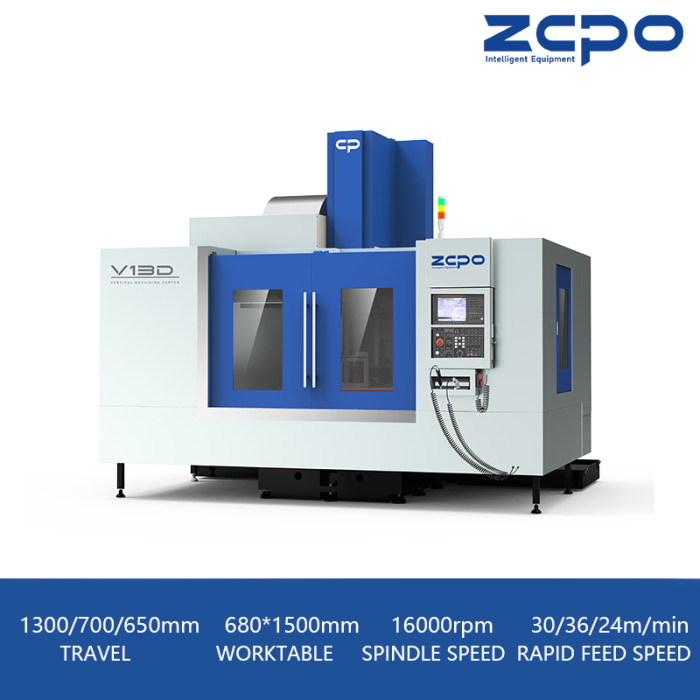

V13D Built-in spindle
Industry machine: long travel, high speed, best choice for processing large-size aluminum products
| Categories | Industry Featured Machine |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | V13D |
| BRAND | ZOPO INTELLIGENT |
| CNC system | FANUC/SIEMENS/MITSUBISHI |
| SPINDLE | BUILT IN SPINDLE |
| CONTROL | Semi-closed loop control |
| Update Time | Oct 16,2024 |
Detail Information
V13D
Pan-aluminum processin
Long travel, high speed, best choice for processing large-size aluminum products
1300/700/650mm
X/Y/Z axis travel
680×1500mm
Worktable size
12000rpm
Spindle speed
30/36/24m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
Appearance
Charasteristics
High rigidity, high efficiency, high stability basic structure
Hot sale 8000+ units
Excellent overall performance, high cost performance
- The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machines of the same size.
- The base adopts a large-span base structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.
Built-in spindle for processing molds, aluminum parts, and thin-walled parts
- The lightweight design of moving parts realizes the characteristics of high speed, fast feed, high precision, etc., and is particularly suitable for the processing of non-ferrous metal mold parts.
- By reducing tool change time and improving the acceleration/deceleration time of all axis feed systems, higher productivity is achieved. It has excellent efficiency and precision in small hole processing, short stroke acceleration/deceleration processing, small line segment curved corner processing and other scenarios.
Superior processing capabilities
The VMC series machines with stable cutting performance are suitable for automotive parts, 3C industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1300/700/650mm
- Distance from column to spindle center
- 762mm
- Distance from table surface to spindle nose
- 190-840mm
Worktable
Unit
- Worktable size
- 680x1500mm
- T-slot size
- 5-18*125mm
- Max. load bearing of worktable
- 800kg
Spindle
Unit
- Spindle hole taper
- BBT40
- Main motor power
- 16/18.5KW
- Spindle speed
- 16000(built-in)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 30/36/24m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 2.5S
Accuracy
Unit
- Positioning accuracy
- 0.008mm
- Re-positioning accuracy
- 0.004mm
Machine
Unit
- Machine dimension
- 3550*2800*2700mm
- Machine weight
- 8000kg
