HMC80 Positive T type Single worktable
Positive T type horizontal center machining, Ideal choice for big batch automation processing lines
| Categories | Positive T Type |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | HMC80 |
| BRAND | ZOPO CNC |
| CNC | FANUC/SIEMENS/MITSUBISHI |
| SPINDLE | BELT SPINDLE |
| CONTROL | SEMI-CLOSED LOOP CONTROL |
| Update Time | Oct 16,2024 |
Detail Information

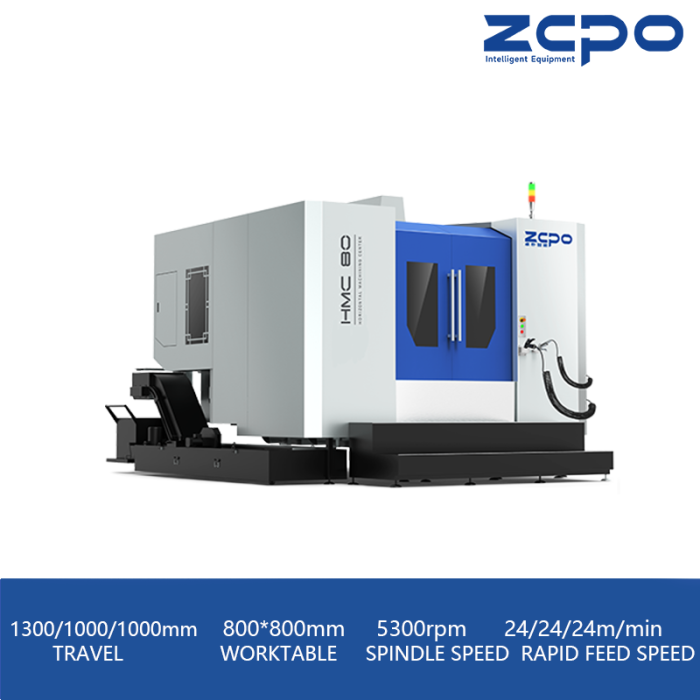

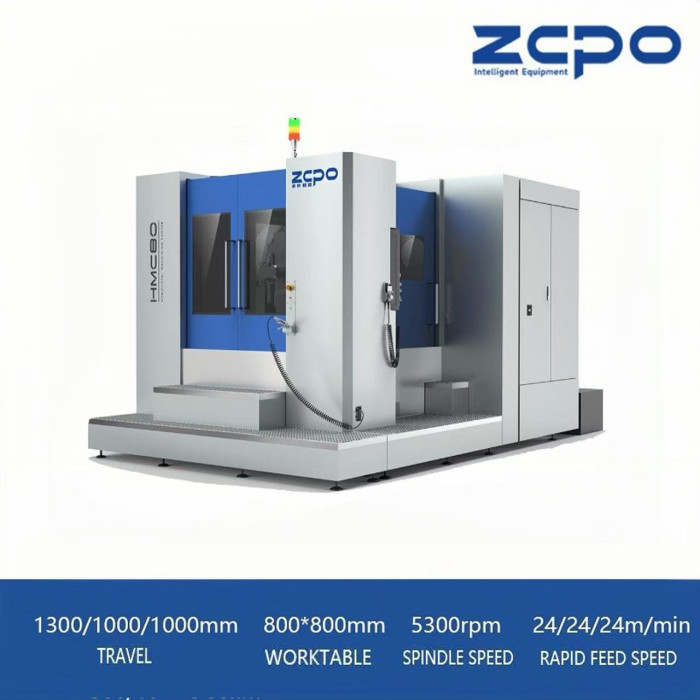

HMC80
POSITIVE T TYPE SINGLE WORKTABLE
Ideal choice for big batch automation processing lines
1300/1000/1000mm
X/Y/Z axis travel
800x800mm
Worktable size
5300rpm
Spindle speed
24/24/24m/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us

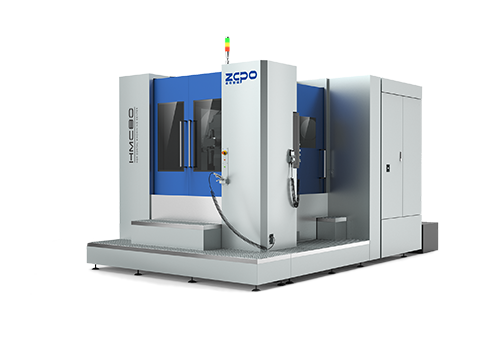

Appearance
Characteristics
Positive T type machine body
Better igidity than inverted T type
The accuracy of the whole machine is significantly improved
Less movement inertia of 3 axis moving component
Easy to achieve high speed and high precision processing
X-axis stepped layout
Effectively lower the center of gravity of the column
Strengthen the force support behind the column during machining
Improve spindle boring quality
High precision double nut ball screw
Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axis rapid feed speed:24/24/24m/min
High rigidity, high precision
Low noise roller type linear guideway
Ensure high stability
Application industry
Suitable for parts with complex shapes and
mass production of products requiring high precision
Especially the processing of box and complex structural parts
Industries such as automotive, aerospace, Marine and power generation
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1300/1000/1000mm
- Distance from spindle center to table surface
- 20-1020mm
- Distance from spinlde nose to table surface
- 200-1200mm
Worktable
Unit
- Worktable size
- 800x800mm
- Workpiece clamping type
- 5-22x160mm
- Rotary diameter of workpiece
- Φ1700
- Max. load bearing of worktable
- 2000kg
Spindle
Unit
- Spindle hole taper
- BT50
- Spindle power
- 15/18.5KW
- Max. spindle speed
- 5300(belt)rpm
Feed
Unit
- Max. feed speed
- 6000mm/min
- Rapid feed speed
- 24/24/24m/min
Tool magzine
Unit
- Tool magzine capacity
- 24T
- Tool changing time
- 5.5S
Accuracy
Unit
- Positioning accuracy
- 0.012mm
- Re-positioning accuracy
- 0.008mm
- B axis positioning accuracy
- 12''
- B axis repositioning accuracy
- 2''
Machine
Unit
- Machine dimension
- 5300*4200*3270mm
- Machine weight
- 15000kg
