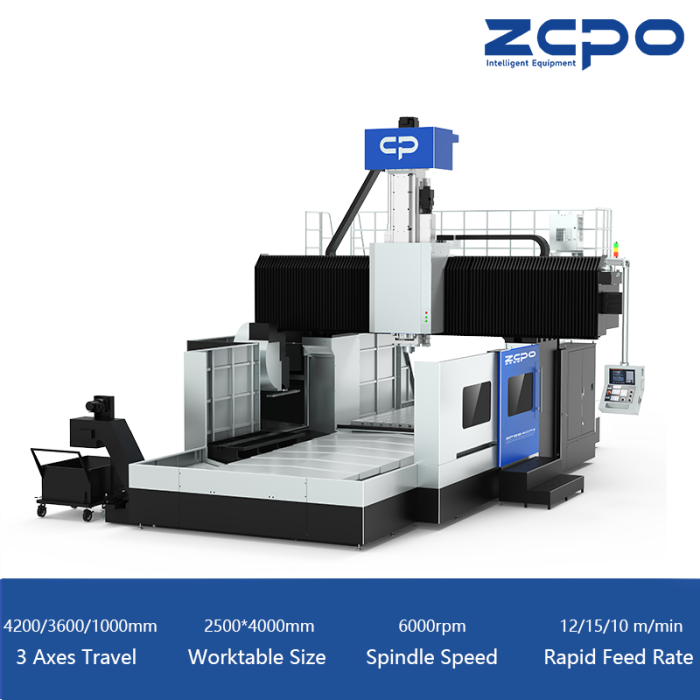

SP2540FII Direct gear box Square ram

ZOPO Upgraded square ram double column machining center: the first choice for large molds, mechanical parts, oil, aviation, rail transportation and other industries with large workpieces and heavy processing.

Categories	Upgraded Square Ram Series
Brand	ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
Model	SP2540FII
Brand	ZOPOCNC
CNC	FANUC/SIEMENS/MITSUBISHI
SPINDLE	DIRECT GEAR BOX
CONTROL	SEMI- CLOSED LOOP CONTROL
Update Time	Nov 22,2024

Contact Now

Detail Information

SP2540FII

Upgraded Square Ram Series

The first choice for large molds, mechanical parts, oil, aviation, rail transportation and other industries with large workpieces and heavy processing.

4200/3600/1000mm

TRAVEL

2500x4000mm

WORKTABLE

6000rpm

SPINDLE SPEED

12/15/10m/min

RAPID FEED RATE

Model
Appearance
Characteristics
Parameters
Contact Us

Appearance

Characteristics

Serialized and modular design

ZOPO Upgraded Square ram series double column machining center adopts advanced design concept, combined with Finite Element Analysis(FEA), which can effectively reduce the deformation of the machine during machining, and improve the machining accuracy and accuracy retention at the same time.

The products are rich in variety and complete series to meet the processing needs of different industries; suitable for aluminum alloy, cast iron, steel and other materials.

The overall appearance design easy the operation and maintenance after comprehensive study of ergonomics , especially optimized design of waterproof and chip removal system.

Modular design provides customers with more configuration options.

Large span, large travel, high torque, high rigidity structural design

All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine tool.

High torque：Imported spindle unit, and using imported carbon fiber coupling to directly connect the motor and gearbox, with a maximum output torque of 1000 N.M.
Large travel：X axis largest travel 24m to meet the needs of long workpieces
Large span：Full range of span and Y axis travel maximization design, can be freely equipped with a variety of attachment milling head; effectively increase the range of machining capacity of the machine.
High torque：Brand-new casting structure, beam sliding saddle bonding surface guideway adopts vertical orthogonal distribution, to improve the overall rigidity and precision stability of the machine tool.

Easier to use and more powerful control system

Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
