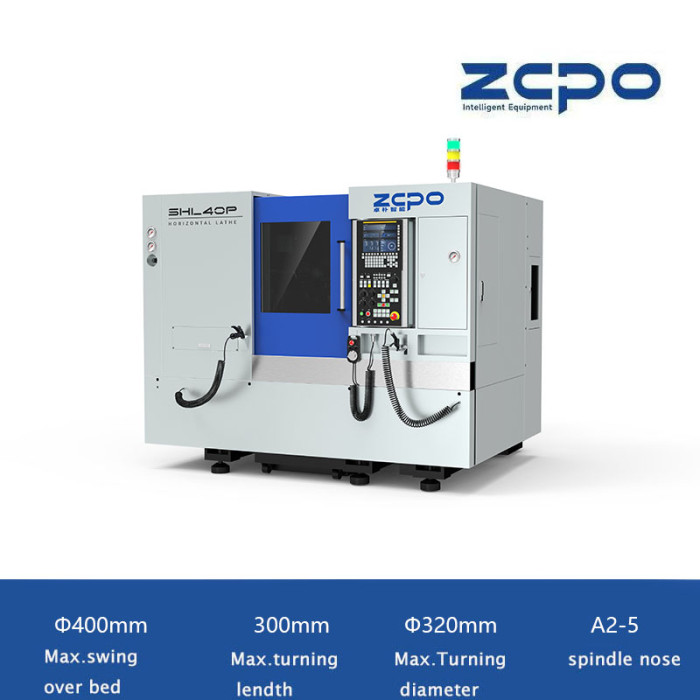

SHL40P High Application
High Efficiency, Compact Design, Low Cost
| Categories | CNC Horizontal Lathe |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | SHL40P |
| Brand | ZOPO Intelligent |
| CNC | Fanuc/Siemens/Mitsubishi/GNC/KND |
| Spindle Nose | A2-5 |
| Control Mode | Semi-closed loop |
| Update Time | Nov 24,2024 |
Detail Information
SHL40P
High Application
High Efficiency, Compact Design,
Low Cost
Φ400mm
Max.Swing Over Bed
300mm
Max.Turning Length
Φ320mm
Max.Turning Dia
A2-5
Spindle Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Compact Design
The compact design occupy smaller space, and easy to install and use.
The gang tool layout can quickly change tools, reduce tool changing time, and improve processing efficiency. Compared with some complex CNC machines, its structure is relatively simple and the cost is relatively low
High Rigidity Structure
The design of the body and components has high rigidity, which can ensure stability during the machining process, reduce vibration and deformation, and improve the processing accuracy.
Flexible Processing
Suitable for processing various axis and disc parts, capable of completing various machining processes such as turning, drilling, boring, tapping, etc., and with high scalability, it can adapt to various internal and external automatic lines, improving machining efficiency
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ400mm
- Max.Turning Length
- 300mm
- Max.Turning Dia
- Φ320mm
- Max. Swing Over Carriage
- Φ160mm
- X/Z Axis Travel
- 460/365mm
Spindle
Unit
- Spindle Hole Taper
- A2-5
- Max. Passing Bar Dia.
- Φ42mm
- Spindle Speed Range
- 50-5000mm
- Power
- 5.5/7.5kW
- Standard Chuck Dia.
- Φ42Collet
Feed
Unit
- Rapid Feed Rate
- 20/24m/min
Tailstock
Unit
- Tailstock Spindle Taper
- /
Turret
Unit
- Standard Turret
- Gang Tool
- Nearby Tool Select
- /
Machine
Unit
- Machine Dimension
- 2200*1600*1700mm
- Machine Weight
- 2500kg
