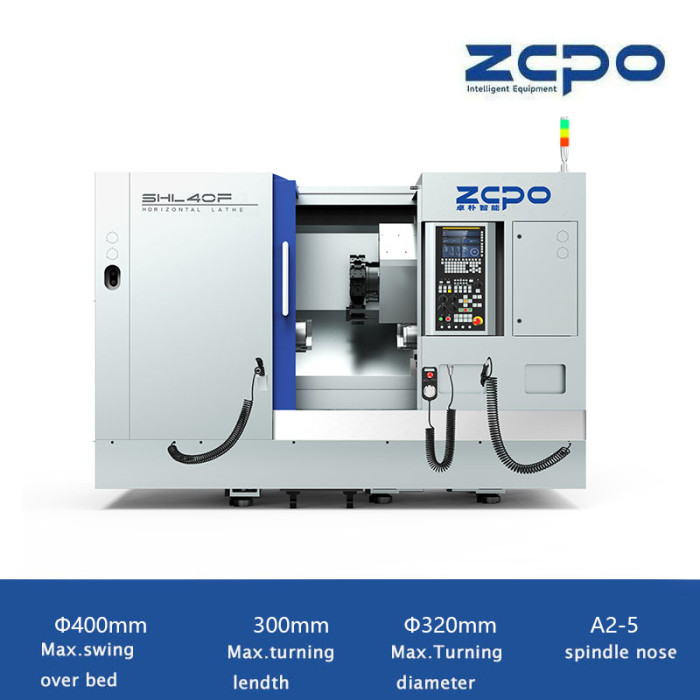

SHL40F Cost-Effective Domestic-Configuration
Cost-Effective, Compact Design, Wide Applicability
| Categories | CNC Horizontal Lathe |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | SHL40F |
| Brand | ZOPO Intelligent |
| CNC | Fanuc/Siemens/Mitsubishi/GNC/KND |
| Spindle Hole Taper | A2-5 |
| Control Mode | Semi-closed loop |
| Update Time | Oct 16,2024 |
Detail Information
SHL40F
High Capability
Cost-Effective, Compact Design,
Wide Applicability
Φ400mm
Max.Swing Over Bed
300mm
Max.Turning Length
Φ320mm
Max.Turning Dia
A2-5
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Cost-effective
On the basis of the P series, use more cost-effective functional components significantly enhances the product's market competitiveness.
Compact Design&High Efficenty
The compact design occupy smaller space, and easy to install and use.
The gang tool layout can quickly change tools, reduce tool changing time, and improve processing efficiency.
Flexible Processing
Suitable for processing various axis and disc parts, capable of completing various machining processes such as turning, drilling, boring, tapping, etc., and with high scalability, it can adapt to various internal and external automatic lines, improving machining efficiency
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ400mm
- Max.Turning Length
- 300mm
- Max.Turning Dia
- Φ320mm
- Max. Swing Over Carriage
- Φ160mm
- X/Z Axis Travel
- 460/365mm
Spindle
Unit
- Spindle Hole Taper
- A2-5
- Max. Passing Bar Dia.
- Φ42mm
- Spindle Speed Range
- 50-5000mm
- Power
- 5.5/7.5mm
- Standard Chuck Dia.
- φ42Collet
Feed
Unit
- Rapid Feed Rate
- 20/20m/min
Tailstock
Unit
- Tailstock Spindle Taper
- /
Turret
Unit
- Standard Turret
- Gang Tool
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2200*1600*1700mm
- Machine Weight
- 2500kg
