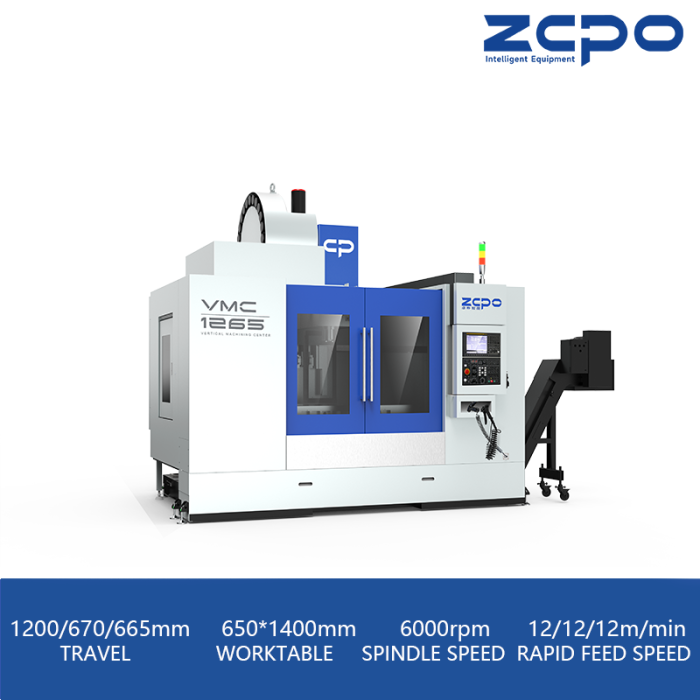

VMC1265 Box guideway Belt spindle
ZOPO VMC classic series: a product series with complete machine models, wide processing range, multiple optional configurations and the best cost-effectiveness.
| Categories | VMC Series - Classic Models |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | VMC1265 |
| BRAND | ZOPOCNC |
| CNC | FANUC/SIEMENS/MITSUBISHI |
| SPINDLE | BELT SPINDLE |
| CONTROL | SEMI-CLOSED LOOP CONTROL |
| Update Time | Nov 22,2024 |
Detail Information
VMC1265
Classic model
The best choice for aluminum processing, high-precision molds and parts processing
1200/670/665mm
X/Y/Z axis travel
650×1400mm
Worktable size
6000rpm
Spindle speed
12/12/12m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
Appearance
Charasteristics
3 axes box guideway machine body structure with high rigidity heavy cutting and high stability
- The base adopts double-layer covered box structure, and the base, bed saddle, worktable and column are all reinforced with rib structure, which makes the rigidity and precision of the machine tool better guaranteed, and thus avoids the deformation of the machine tool.
- Precision hand scraping reduces wear and ensures that the machine remains highly accurate.
Superior processing capabilities
The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1200/670/66mm
- Distance from column to spindle center
- 700mm
- Distance from table surface to spindle nose
- 115-780mm
Worktable
Unit
- Worktable size
- 650*1400mm
- T-slot size
- 5-18*125mm
- Max. load bearing of worktable
- 1200kg
Spindle
Unit
- Spindle hole taper
- BT50
- Main motor power
- 11/15KW
- Spindle speed
- 6000(belt)rpm
Feed
Unit
- Max. feed speed
- 10000mm/min
- Rapid feed speed
- 12/12/12m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 4.5S
Accuracy
Unit
- Positioning accuracy
- 0.01mm
- Re-positioning accuracy
- 0.005mm
Machine
Unit
- Machine dimension
- 4800*2700*3250mm
- Machine weight
- 9000kg
