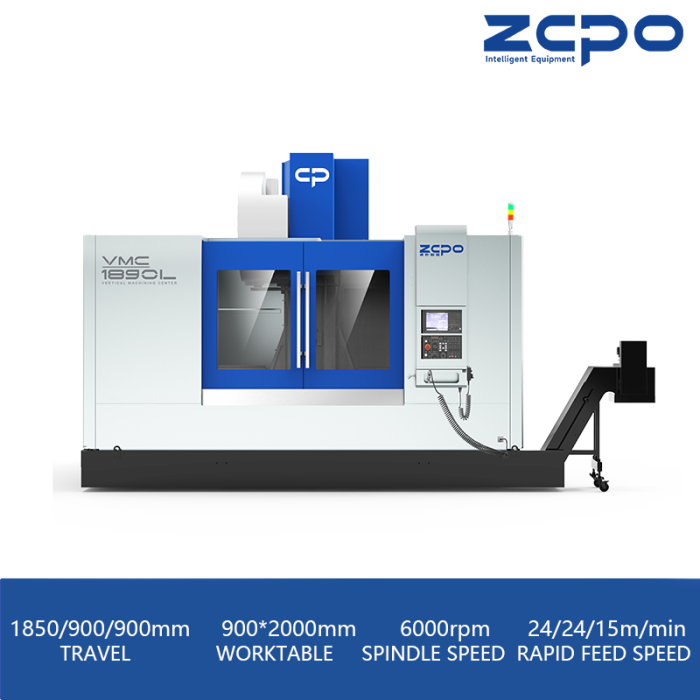

VMC1890L XY Linear guideway Z Box guideway Belt spindle
ZOPO VMC classic series: a product series with complete machine models, wide processing range, multiple optional configurations and the best cost-effectiveness.
| Categories | VMC Series - Classic Models |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | VMC1890L |
| BRAND | ZOPOCNC |
| CNC | FANUC/SIEMENS/MITSUBISHI |
| SPINDLE | BELT SPINDLE |
| CONTROL | SEMI-CLOSED LOOP CONTROL |
| Update Time | Nov 22,2024 |
Detail Information
VMC1890L
Classic model
The best choice for aluminum processing, high-precision molds and parts processing
1850/900/900mm
X/Y/Z axis travel
900×2000mm
Worktable size
6000rpm
Spindle speed
24/24/15m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
Appearance
Charasteristics
XY axis linear guideway Z axis box guideway large machine body structure with high rigidity heavy cutting and high stability
- Three-axis full-travel support: unique machine bed slide design, saddle full-travel without hanging phenomenon, the table in the X-axis travel for the full support, processing center in the middle of the two guideway, load force is strong.
- Y-axis adopts four 45mm high rigidity and high load roller linear guideway, 8 heavy slider, strengthen the rigidity and load.
- Convenient and efficient chip conveyor: the machine is equipped with 2 screw rows as standard, effectively discharging the chips generated during machining, with high conveying efficiency.
Superior processing capabilities
The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1850/900/900mm
- Distance from column to spindle center
- 960mm
- Max. load bearing of worktable
- 95-995mm
Worktable
Unit
- Worktable size
- 900x2000mm
- T-slot size
- 7-18*125mm
- Max. load bearing of worktable
- 1800kg
Spindle
Unit
- Spindle hole taper
- BT50
- Main motor power
- 15/18.5KW
- Spindle speed
- 6000(belt)rpm
Feed
Unit
- Max. feed speed
- 10000mm/min
- Rapid feed speed
- 24/24/15m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 4.5S
Accuracy
Unit
- Positioning accuracy
- 0.016mm
- Re-positioning accuracy
- 0.008mm
Machine
Unit
- Machine dimension
- 6000*3490*3880mm
- Machine weight
- 14800kg
