VMC1000P Belt spindle

ZOPO VMC classic series: a product series with complete machine models, wide multiple optional configurations and best cost-effectiveness.

Categories	VMC Series - Classic Models
Brand	ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
Model	VMC1000P
BRAND	ZOPOCNC
CNC	FANUC/SIEMENS/MITSUBISHI
SPINDLE	BELT SPINDLE
CONTROL	SEMI-CLOSED LOOP CONTROL
Update Time	Nov 22,2024

Contact Now

Detail Information

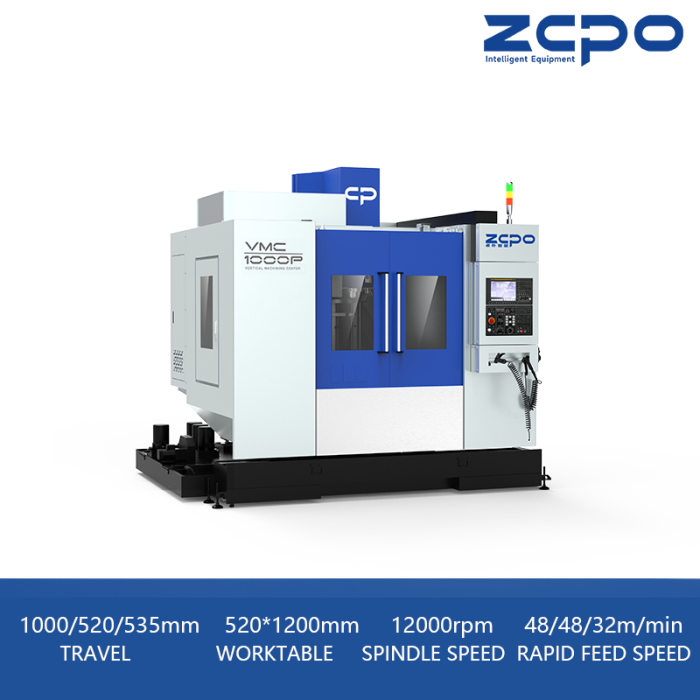

VMC1000P

High rigidity and high efficiency model

The best choice for aluminum processing, high-precision molds and parts processing

1000/520/535mm

X/Y/Z axis travel

520×1200mm

Worktable size

8000rpm

Spindle speed

48/48/32m/min

Rapid feed speed

Model
Appearance
Charasteristics
Parameters
Contact Us

Appearance

Charasteristics

High rigidity, high efficiency and high stability structural design

Hot sale 10000+ units

Excellent overall performance, high cost performance

The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machine tools of the same size.
The base adopts a large-span structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.

High performance spindle

The spindle box guideway is designed with a large cross-section and the structure is optimized to be the best among similar models. It is equipped with a Z-axis weightless structure to ensure the stability and accuracy of vertical high-speed positioning.
The Z-axis guideway span is larger than that of traditional models, which greatly improves the contact ratio between the spindle box and the column, ensuring high torque of the spindle during processing.
The short nose spindle ensures the cutting rigidity of the machine.

Superior processing capabilities

The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
