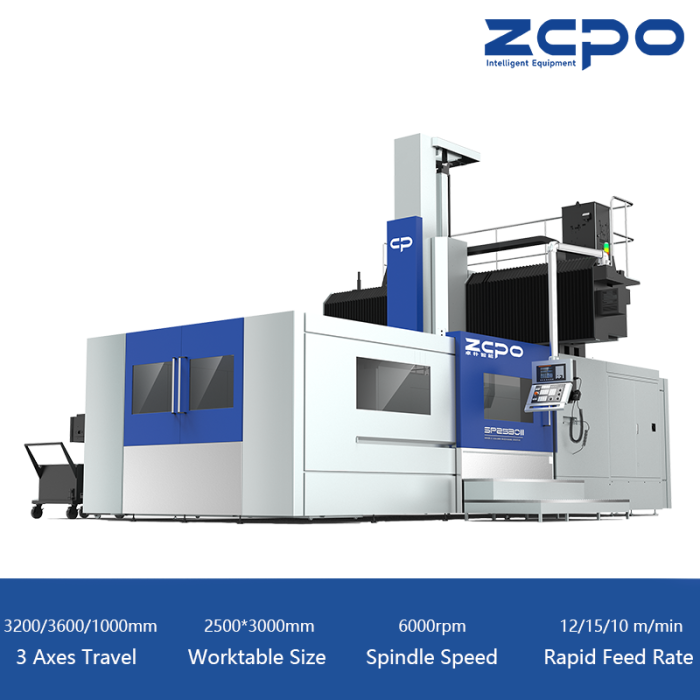

SP2530II Gearhead T type ram

II Upgraded t-type ram series：The first choice for large workpiece processing in industries such as large molds, mechanical parts, petroleum, aviation, rail transportation, etc.

Categories	Upgraded T Type Ram Series
Brand	ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
Model	SP2530II
BRAND	ZOPO INTELLIGENT
SYSTEM	FANUC/SIEMENS/MITSUBISHI
SPINDLE	GEARHEAD
CONTROL WAY	Semi-closed loop control
Update Time	Nov 25,2024

Contact Now

Detail Information

SP2530II

II Upgraded T-type ram series

The first choice for large workpiece processing in industries such as large molds, mechanical parts, petroleum, aviation, rail transportation, etc.

3200/3600/1000mm

X/Y/Z axis travel

3000x2500mm

Worktable size

6000rpm

Spindle speed

12/15/10m/min

Rapid feed speed

Model
Appearance
Characteristics
Parameters
Contact Us

Appearance

Characteristics

Serialized and modular design

ZOPO II superior series T-type slide adopts advanced gantry design concept, combined with FEA finite element analysis, which effectively reduces the deformation of machine during processing, while improving processing accuracy and precision retention.

The full range of modular designs provides customers with more configuration options.

The product types are rich and the series are complete to meet the processing needs of different industries; it is suitable for various materials such as aluminum alloy, cast iron, steel, etc.

The overall external protection design is ergonomic, user-friendly, easy to operate and maintain, and has a good waterproof and anti-chip optimization design effect.

Large span, long travel, high stability structural design

All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine.

Ram：The double balance bars are symmetrically distributed on both sides to improve the precision of the moving parts of the ram.
Worktable：The worktable is hollowed out, the T-slot spacing on the table is 200mm, and the moving parts are lightweight, which improves the responsiveness of the machine during dynamic processes.
Machine body：The one-piece casting body and the larger span of the body rails effectively enhance the load-bearing capacity of the worktable.
Beam：The guideways on the crossbeam and saddle joint surfaces are distributed vertically and orthogonally to improve the overall rigidity and precision stability of the machine.
Two column distance：The full range of two column distance and Y travel are designed to maximize the range of machine, and can be freely equipped with a variety of accessory milling heads; effectively improving the processing capacity of the machine.

Easier to use and more powerful control system

Relying on the in-depth collaboration between ZOPO software development engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multi-functional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
