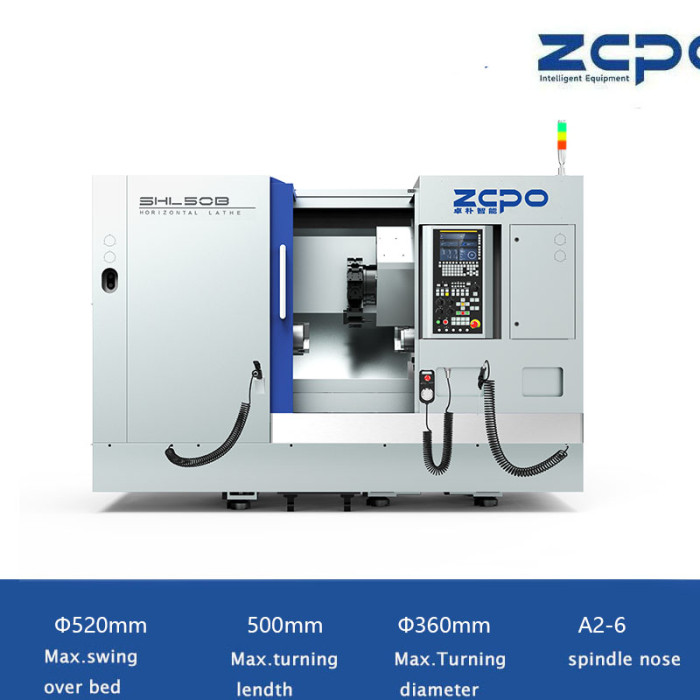

SHL50B High Capability
30 ° stepped guideway machine bed，high rigidity self-made servo turret，High cutting ability
| Categories | CNC Horizontal Lathe |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | SHL50B |
| Brand | ZOPO Intelligent |
| CNC | Fanuc/GNC/KND |
| Spindle Hole Taper | A2-6 |
| Control Mode | Semi-closed loop |
| Update Time | Oct 16,2024 |
Detail Information
SHL50B
High Capability
30 ° stepped guideway machine bed，
High rigidity self-made servo turret，
High cutting ability
Φ520mm
Max.Swing Over Bed
500mm
Max.Turning Length
Φ360mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Increased Span and Width Saddle
The hollow structure with a reasonable tendon type, has the characteristics of high rigidity and high stability, the best center symmetrical spindle design, the increased scraping contact area, the high -strength side pressure plate is locked, which has high rigidity and high thermal stability.
High Rigidity Servo Turret
Self developed high rigidity servo turret ensures processing stability and rigidity, suitable for large cutting and harder metal processing.
Horizontal Stepped Guideway Bed
To provide a reliable foundation for lathes, high rigidity, high precision, and high stability.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ520mm
- Max.Turning Length
- 500mm
- Max.Turning Dia
- Φ360mm
- Max. Swing Over Carriage
- Φ360mm
- X/Z Axis Travel
- 200/550mm
Spindle
Unit
- Spindle Hole Taper
- A2-6
- Max. Passing Bar Dia.
- Φ50mm
- Spindle Speed Range
- 50-4500mm
- Power
- 11/15mm
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5# T
Turret
Unit
- Standard Turret
- 12（Servo）T
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2502*1723*1753mm
- Machine Weight
- 3800kg
