SVD850 Direct spindle

SV Series: a new upgraded vertical machining center, the best choice for machining performance and machining range in the same class

Categories	SV Series - Excellent Models
Brand	ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
Model	SVD850
BRAND	ZOPOCNC
CNC	FANUC/SIEMENS/MITSUBISHI
SPINDLE	DIRECT SPINDLE
CONTROL	SEMI-CLOSED LOOP CONTROL
Update Time	Oct 16,2024

Contact Now

Detail Information

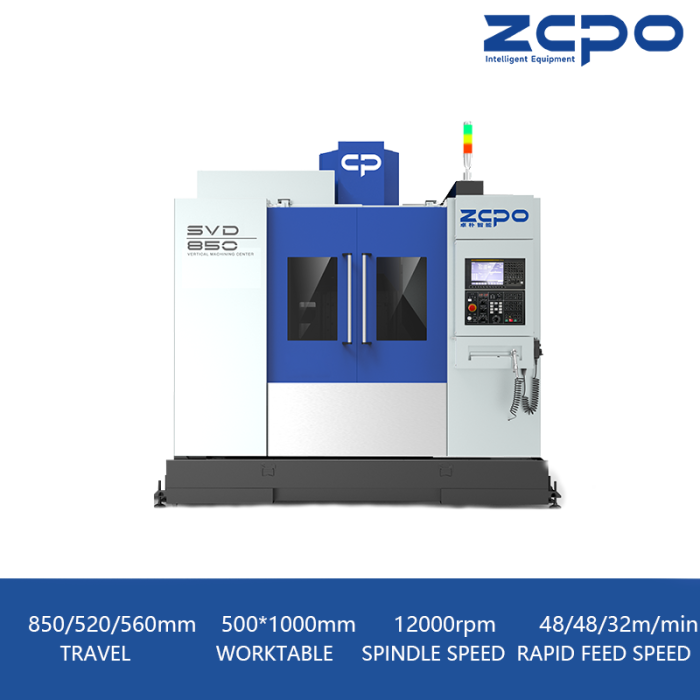

SVD850

High speed and high efficiency model

The best choice for processing performance and processing range in the same level

850/520/560mm

X/Y/Z axis travel

500×1000mm

Worktable size

12000rpm

Spindle speed

48/48/32m/min

Rapid feed speed

Model
Appearance
Charasteristics
Parameters
Contact Us

Appearance

Charasteristics

Stable and reliable bed structure

The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.

Closed spindle box

The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.

Direct spindle

The integrated structure of the spindle box and motor seat reduces the cumulative error of the motor seat assembly

Greatly improve processing efficiency and quality

Extend tool life and reduce processing costs

Stable and reliable tool changing system

The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.

The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.

The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.

The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.
