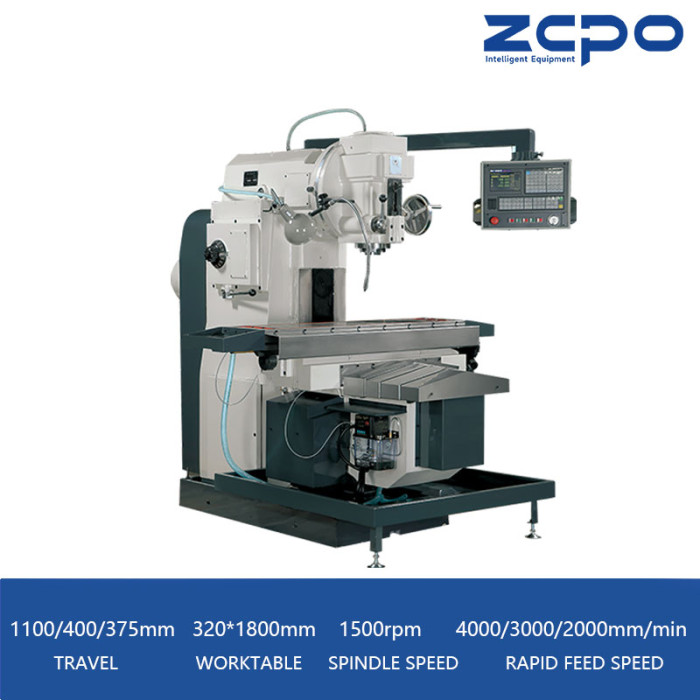

XK5042
CNC KNEE TYPE MILLING MACHINE
1100/400/375mm
X/Y/Z axis travel
320×1800mm
Worktable size
1500rpm
Spindle speed
4000/3000/2000mm/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Rigidity structure +Stability precision
This horizontal knee type milling machine has high rigidity structure and stable precision. Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
This CNC vertical knee type milling machine has high rigidity structure and stable precision. Configured with high performance numerical control system, which can achieve X Y Z combined
The machine has complete functions, high degree of automation, easy operation and reliable performance.
High rigidity and stability of mechanical structure
The spindle is driven by a fully enclosed flanged disk motor YE2-160M-6-B5, which is with power of 11kW, spindle speed 975rpm, of the YE2-160M-6-B5 type with a power of 7.5kW and a speed of 975rpm, it is transmit by a flexible coupling and the gear of the speed change mechanism. Depend on the mechanism, the spindle speed spindle maximum yo 1500rpm, 18 steps, range from 30-1500rpm.
3 axe adopt high-precision ball screws, others driven by the synchronous belt, which devoted to high precision.
The three direction guide pairs are equipped with quenching and plastering configurations, which can improve to high accuracy and long life.
Extensive Application
The machine has advantages on maching complex and high presision products, no matter for one piece or big batch, like cam, sample, module, arc groove and so on.
More machining can achieve with some accessories like universal indexing head, circular table and so on
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1100/400/375 mm
- Max spindle quill travel
- 85 mm
- Distance from spindle nose to table surface 100-475 mm
- Distance from spindle center to vertical guideway
- 520 mm
- Distance from table center to vertical guideway
- 350-750 mm
Worktable
Unit
- Worktable size
- 420x1800mm
- T slots
- 3-18*100mm
- Max. load bearing of worktable
- 750kg
Spindle
Unit
- Spindle hole taper
- 7：24 No.50
- Spindle power
- 11KW
- Max. spindle speed
- 1500(vertical)rpm
Feed
Unit
- Rapid feed speed
- 2000mm/min
- Feed speed range
- 4000/3000/2000mm/min
Accuracy
Unit
- Positioning accuracy
- 0.025mm
- Re-positioning accuracy
- 0.015mm
Machine
Unit
- Machine dimension
- 2500*2600*2300mm
- Machine weight
- 5100kg
