XK5030B vertical milling head
CNC knee type milling machin,vertical milling head, rigidity structure
| Categories | CNC Milling Machine |
|---|---|
| Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | XK5030B |
| BRAND | ZOPO CNC |
| CNC | FANUC/KND/HNC |
| CONTROL | FANUC/KND/HNC |
| Update Time | Nov 22,2024 |
Detail Information

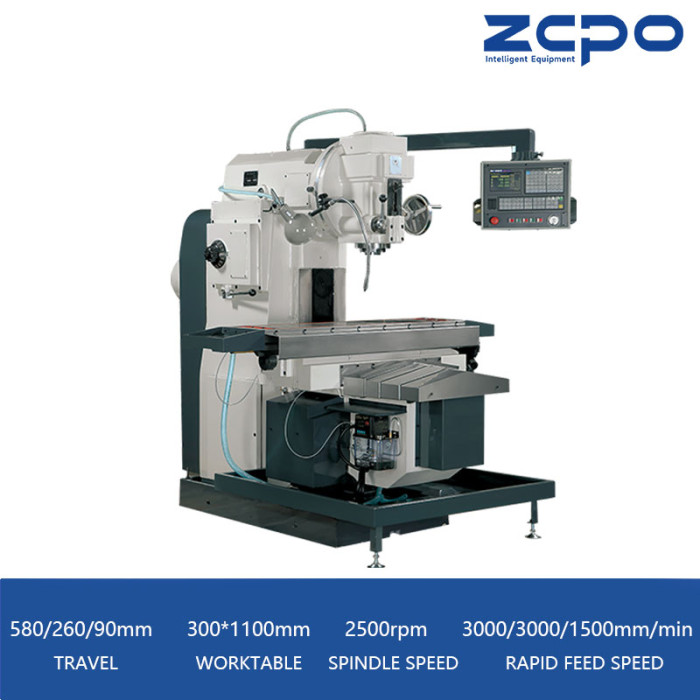

XK5030B
CNC KNEE TYPE MILLING MACHINE
580/260/90mm
X/Y/Z axis travel
300×1100mm
Worktable size
2500rpm
Spindle speed
3000/3000/1500mm/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Rigidity structure +Stability precision
This horizontal knee type milling machine has high rigidity structure and stable precision. Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
This CNC knee type milling machine has high rigidity structure and stable precision. Configured with high performance numerical control system, which can achieve X Y Z combined
The machine has complete functions, high degree of automation, easy operation and reliable performance.
High rigidity and stability of mechanical structure
The spindle is driven by variable frequency motor, which is with power of 4kW and max. speed 5000rpm. It is transmit by a flexible coupling and the gear of the speed change mechanism. Depend on the variable frequency power to spindle, speed range from 200-2500rpm.
3 axe adopt high-precision ball screws, Y axis driven by motor directly, others driven by the synchronous belt, which devoted to high precision.
Three directions guideway are equipped with quenching and plastic coating, which can improve to high accuracy and long life.
Extensive Application
This machine has advantages on maching complex and high presision products, no matter for one piece or big batch, like cam, sample, module, arc groove and so on.
More machining can achieve with some accessories like universal indexing head, circular table and so on.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 580/260/90 mm
- Max. spindle quill travel
- 90mm
- Distance from spindle nose to table surface
- 70-430 mm
- Distance from spindle center to vertical guideway
- 290 mm
- Distance from table center to vertical guideway
- 160-420 mm
Worktable
Unit
- Worktable size
- 300x1100mm
- T slots
- 3-14*63
- Max. load bearing of worktable
- 280kg
Spindle
Unit
- Spindle hole taper
- 7：24 No.40
- Spindle power
- 4KW
- Max. spindle speed
- 2500rpm
Feed
Unit
- Rapid feed speed
- 2000mm/min
- Feed speed range
- 3000/3000/1500mm/min
Accuracy
Unit
- Positioning accuracy
- 0.025mm
- Re-positioning accuracy
- 0.015mm
Machine
Unit
- Machine dimension
- 1500*1470*1800mm
- Machine weight
- 1800kg
