SVG1580 gearhead spindle

SV Series: A new upgraded vertical machining center, the best choice for machining performance and machining range in the same class

Categories	SV Series - Excellent Models
Brand	ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
Model	SVG1580
BRAND	ZOPO INTELLIGENT
CNC system	FANUC/SIEMENS/MITSUBISHI
SPINDLE	GEARHEAD
CONTROL	Semi-closed loop control
Update Time	Nov 22,2024

Contact Now

Detail Information

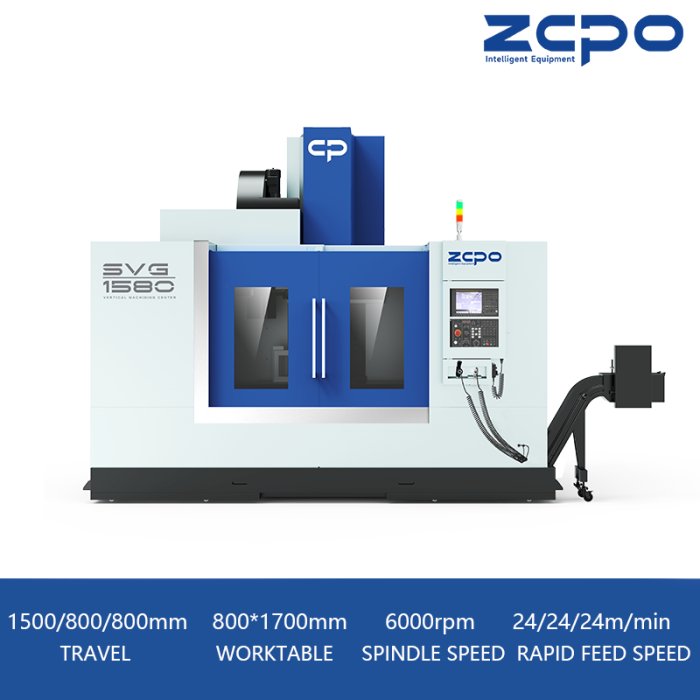

SVG1580

High rigidity and high efficiency model

The best choice for processing performance and processing range in the same level

1500/800/800mm

X/Y/Z axis travel

800×1700mm

Worktable size

6000rpm

Spindle speed

24/24/24m/min

Rapid feed speed

Model
Appearance
Charasteristics
Parameters
Contact Us

Appearance

Charasteristics

Higher stability and high rigidity bed structure

The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine.
The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tool's three-axis transmission.
The Y-axis uses four 45mm high-rigidity and high-load roller linear guideways and heavy-duty 8-slide blocks to enhance rigidity and load-bearing capacity.
Convenient and efficient chip handling: The machine is equipped with two screw rows as standard to effectively discharge the iron chips generated during processing, with high conveying efficiency.

Closed spindle box

The spindle box adopts a closed box structure, the contact size with the column guide rail is enlarged, and the overall lightweight design. The short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine processing.

High rigidity spindle

The SVG series uses built-in gear transmission, and the 2-stage gear-driven spindle uses cylindrical roller bearings to ensure strong torque at low speed and stable speed at high speed to meet customers' diverse processing needs. The maximum torque at low speed can reach 1042Nm.

Stable and reliable tool changing device

The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.

The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine.

The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.

The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.
